Low-pressure, medium-pressure and high-pressure blowers for machines and plants as well as process air fans

On this page you will find a selection of our centrifugal blowers. These are also called centrifugal blowers or fans. In contrast to axial fans, they have a greater pressure increase with a constant air volume.

Our high-quality centrifugal fans are designed for industrial requirements and are characterised by load capacity as well as energy-efficient efficiency. We offer a wide range of low-pressure, medium-pressure and high-pressure fans in various designs and materials for almost any application.

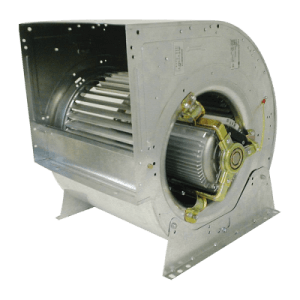

CBM

Low-pressure centrifugal fan with direct drive and double-sided intake for conveying room air. Max. Conveying medium temperature = 40°C

pst max =  730 Pa

Qmax = 9 100 m3/h

Pmax = 2 200 W

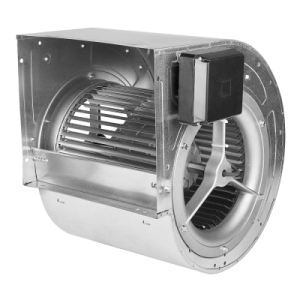

CBM RE

Low-pressure centrifugal fan with direct drive and double-sided intake for conveying room air. Max. Conveying medium temperature = 40°C

pst max =     620 Pa

max = 11 650 m3/h

max =   2 200 W

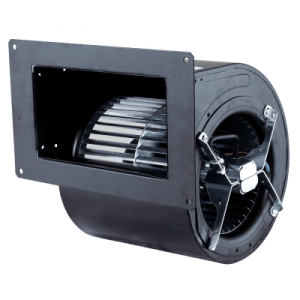

DEM

Low-pressure centrifugal fan with direct drive and double-sided intake for conveying room air. Max. Conveying medium temperature = 40°C

pst max =  340 Pa

Qmax = 1 300 m3/h

Pmax =    200 W

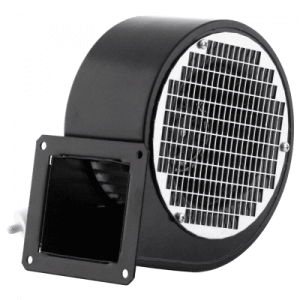

SEM

Low-pressure centrifugal fan for conveying normal air up to max. 40°C continuous temperature.

pst max =   480 Pa

max = 1 000 m3/h

max =    278 W

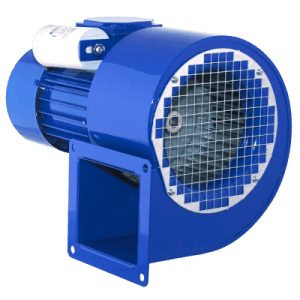

GFB

Low-pressure centrifugal fan for conveying normal air up to max. 80°C continuous temperature.

pst max = 2 280 Pa

Qmax = 10 300 m3/h

Pmax =   7 500 W

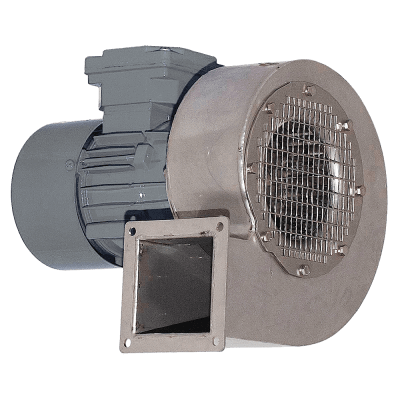

GFS

Low-pressure centrifugal fan for conveying aggressive gases with low dust content. Max. Conveying medium temperature = 80°C

pst max = 1 450 Pa

max =  1 735 m3/h

max =  1 100 W

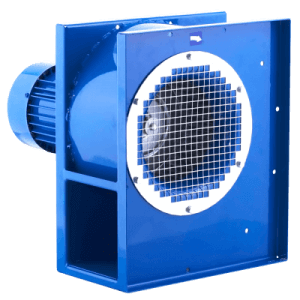

LFB

Low-pressure centrifugal fan for conveying aggressive gases with low dust content. Max. Conveying medium temperature = 80°C

pst max = 2 990 Pa

Qmax = 10 350 m3/h

Pmax =  11 000 W

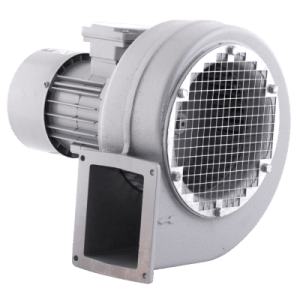

LFA

Low-pressure centrifugal fan for conveying aggressive gases with low dust content. Max. Conveying medium temperature = 80°C

pst max = 2 400 Pa

max =  5 125 m3/h

max =  5 500 W

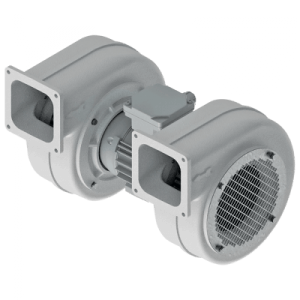

2LFA

Two low-pressure centrifugal fans mounted on a motor with two shaft ends for conveying normal air. Max. Conveying medium temperature = 30°C

pst max = 2 225 Pa

Qmax =   9 100 m3/h

Pmax =   7 500 W

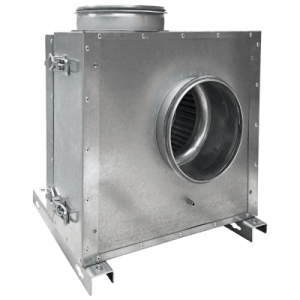

KEF

Medium-pressure centrifugal fan for conveying normal air up to max. 40°C continuous temperature.

pst max = 1 700 Pa

max =  5 100 m3/h

max =   2 200 W

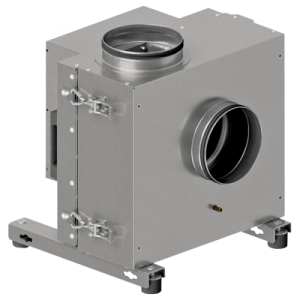

KEF EC

Medium-pressure centrifugal fan for conveying normal air up to max. 40°C continuous temperature.

pst max = 1 830 Pa

Qmax =   5 100 m3/h

Pmax =   3 300 W

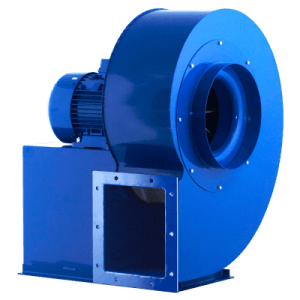

GMT

Medium-pressure transport centrifugal fan for transporting saturated air. Max. Conveying medium temperature = 80°C

pst max =  7 645 Pa

max = 12 450 m3/h

max =  37 000 W

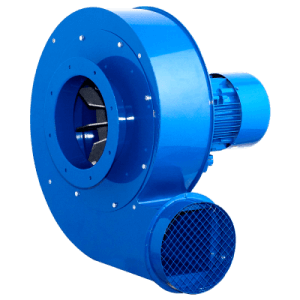

GMT-K

Medium-pressure transport centrifugal fan for transporting saturated air. Max. Conveying medium temperature = 80°C

pst max = 3 530 Pa

Qmax =   7 350 m3/h

Pmax =   7 500 W

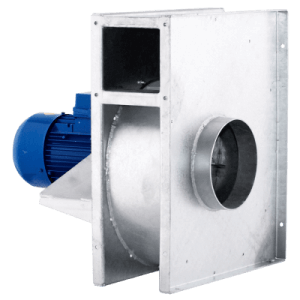

GMT-HT

Medium-pressure transport centrifugal fan for transporting saturated air. Max. Conveying medium temperature = 250°C

pst max = 2 315 Pa

max =  2 900 m3/h

max =   3 000 W

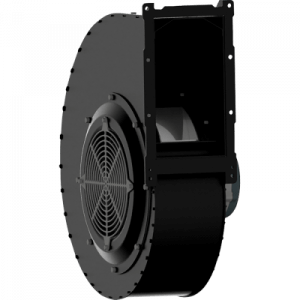

GSB

Medium-pressure centrifugal fan for conveying normal air up to max. 80°C continuous temperature.

pst max = 2 480 Pa

Qmax =   6 500 m3/h

Pmax =   3 000 W

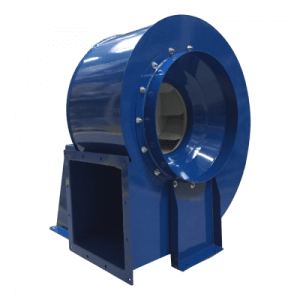

GMB

Medium-pressure centrifugal fan for conveying normal air up to max. 80°C continuous temperature.

pst max =  3 795 Pa

max = 14 030 m3/h

max =  11 000 W

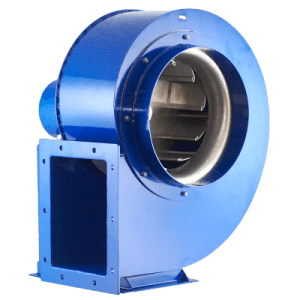

MBB

Medium-pressure centrifugal fan for conveying normal air up to max. 80°C continuous temperature.

pst max = 4 420 Pa

Qmax = 53 630 m3/h

Pmax = 37 000 W

BL

Low-pressure centrifugal fan for conveying process media up to max. 250°C continuous temperature.

pst max =  3 360 Pa

max = 65 640 m3/h

max = 30 000 W

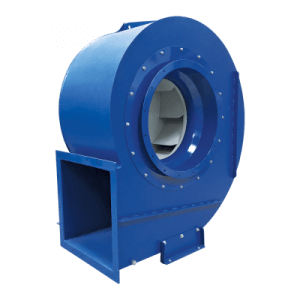

BM

Medium-pressure centrifugal fan for conveying process media up to max. 250°C continuous temperature.

pst max = 6 090 Pa

Qmax = 71 918 m3/h

Pmax = 37 000W

BH

High-pressure centrifugal fan for conveying process media up to max. 250°C continuous temperature.

pst max =    8 280 Pa

max = 114 240 m3/h

max = 132 000 W

BE

Medium-pressure centrifugal fan for conveying process media up to max. 250°C continuous temperature.

pst max =    12 200 Pa

Qmax =      75 460 m3/h

Pmax =    132 000 W

BN

Low-pressure centrifugal fan for conveying process media up to max. 250°C continuous temperature.

pst max =    3 470 Pa

max = 100 904m3/h

max =    55 000 W

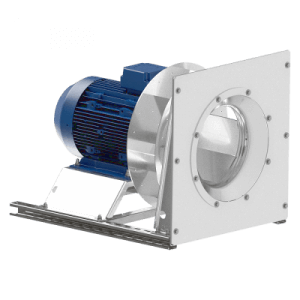

PBM

Centrifugal built-in fan for conveying process media up to max. 250°C continuous temperature.

pst max = 3 280 Pa

Qmax = 32 300 m3/h

Pmax = 18 500 W

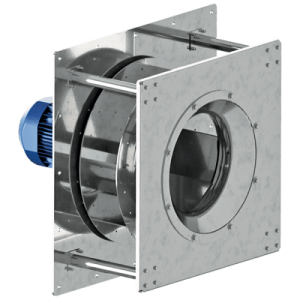

PBMV

Centrifugal built-in fan for conveying process media up to max. 250°C continuous temperature.

pst max =  3 420 Pa

max = 35 980 m3/h

max =  18 500 W

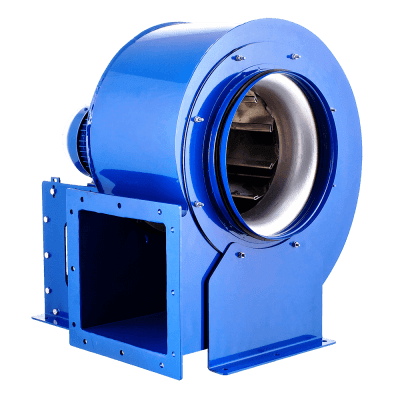

MSBN

Medium-pressure centrifugal fan for conveying normal air up to max. 80°C continuous temperature.

pst max = 6 900 Pa

Qmax = 48 500m3/h

Pmax = 55 000 W

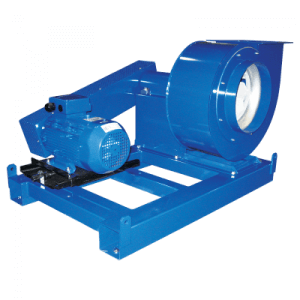

MSB-VB

V-belt driven medium pressure centrifugal fan for conveying normal air up to max. 120°C continuous temperature.

pst max =  6 850 Pa

max = 11 100 m3/h

max = 22 000 W

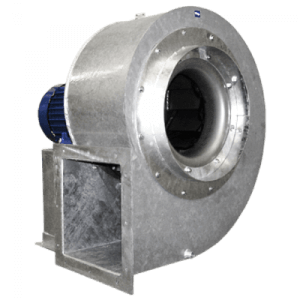

MSB-HT

Medium-pressure centrifugal fan for conveying process media up to max. 250°C continuous temperature.

pst max = 3 500 Pa

Qmax = 10 400 m3/h

Pmax =   7 500 W

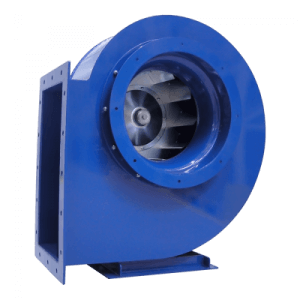

MRB

Medium-pressure centrifugal fan for conveying process media up to max. 80°C continuous temperature.

pst max =  5 000 Pa

max = 25 500 m3/h

max = 37 000 W

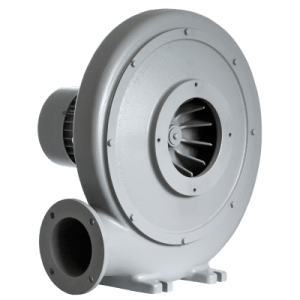

MPA

Medium-pressure transport centrifugal fan for transporting saturated air. Max. Conveying medium temperature = 80°C

pst max = 6 950 Pa

Qmax =   4 900 m3/h

Pmax = 15 000 W

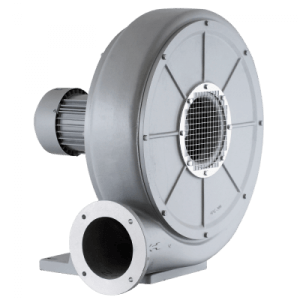

MBA

Medium pressure centrifugal fan for conveying saturated air. Max. Pumped medium temperature = 80°C

pst max = 6 530 Pa

max =  5 860 m3/h

max = 11 000 W

MRA

Medium-pressure centrifugal fan for conveying normal air up to max. 80°C continuous temperature.

pst max = 6 780 Pa

Qmax =   6 080 m3/h

Pmax =  11 000 W

MTA

Medium-pressure transport centrifugal fan for transporting saturated air. Max. Conveying medium temperature = 80°C

pst max = 3 680 Pa

max =  2 320 m3/h

max =  3 000 W

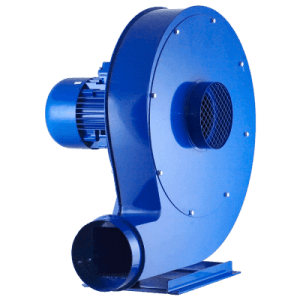

MPT

Medium-pressure transport centrifugal fan for transporting saturated air. Max. Conveying medium temperature = 80°C

pst max = 6 500 Pa

Qmax =   4 120 m3/h

Pmax =  11 000 W

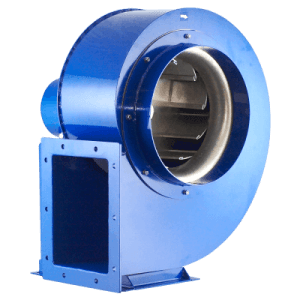

HBB

Medium-pressure centrifugal fan for conveying normal air up to max. 80°C continuous temperature.

pst max = 10 870 Pa

max =  24 300 m3/h

max =   75 000 W

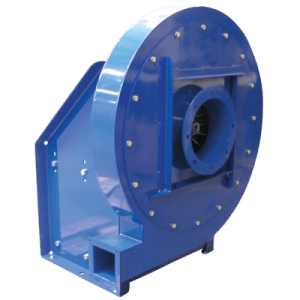

HST

High-pressure centrifugal fan for conveying process media up to max. 80°C continuous temperature.

pst max = 12 110 Pa

Qmax =   4 850 m3/h

Pmax = 22 000 W

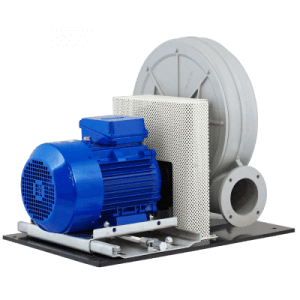

HPB

V-belt driven high-pressure centrifugal fan for conveying process media up to max. 120°C continuous temperature.

pst max = 15 600 Pa

max =    7 650 m3/h

max =   30 000 W

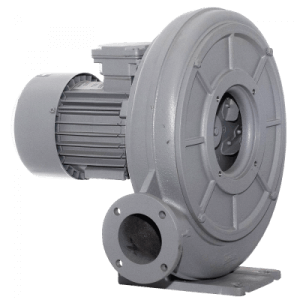

HPB-F

High-pressure centrifugal fan for conveying process media up to max. 80°C continuous temperature. Especially suitable for frequency converter operation.

pst max = 16 250 Pa

Qmax =     5 750 m3/h

Pmax =   22 000 W

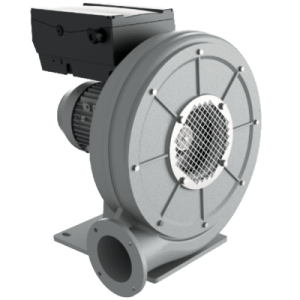

HPB-F INT

High-pressure centrifugal fan with direct drive and integrated frequency converter. The fan is designed for transport systems of non-aggressive and non-explosive gases without contamination.

pst max = 16 150 Pa

max =    6 050 m3/h

max =   19 000 W

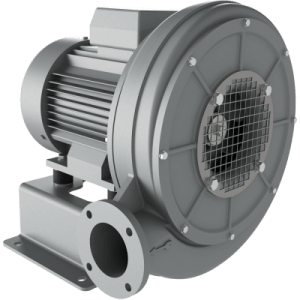

HPB-F 200Hz

Radial high-pressure fan with direct drive. Capable of operating at frequencies up to 200 Hz.

pst max = 30 500 Pa

Qmax =     2 400 m3/h

Pmax =    11 000 W

HPB-F 105/110Hz

High-pressure centrifugal fan for conveying process media up to max. 80°C continuous temperature. Especially suitable for frequency converter operation.

pst max = 19 600 Pa

max =    5 050 m3/h

max =   22 000 W

HPB-F 87Hz

High-pressure centrifugal fan for conveying process media up to max. 80°C continuous temperature. Especially suitable for frequency converter operation.

pst max = 18 400 Pa

Qmax =     5 970 m3/h

Pmax =    15 000 W

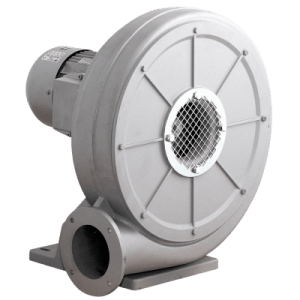

HPBx

High-pressure centrifugal fan for conveying process media up to max. 110°C continuous temperature.

pst max = 7 720 Pa

max =  2 650 m3/h

max =  3 000 W
