Explosion proof fans

Explosion proof fans

Increased safety according to ATEX

Contact:

HTK-Vent GmbH
Inkustraße 1-7/Stiege 8/2.OG
A-3400 Klosterneuburg

For intended use in potentially explosive atmospheres

Our explosion-proof fans comply with the European directive 94/9 EC ATEX. They are used when the conveyed medium, the ambient medium or the process contains flammable or explosive gases or dusts.

Our ATEX blowers are available in a wide variety of designs for many zones and temperature classes. Simply contact us and we will take care of selecting the right product.

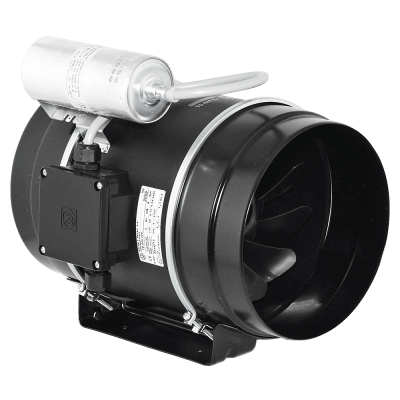

TD EX

TD EX fans meet the requirements of the ATEX Directive 2014/34/EU. They are designed for use in potentially explosive atmospheres outside mines and mining pits.

pst max =  670 Pa

Qmax = 1 320 m3/h

Pmax =    197 W

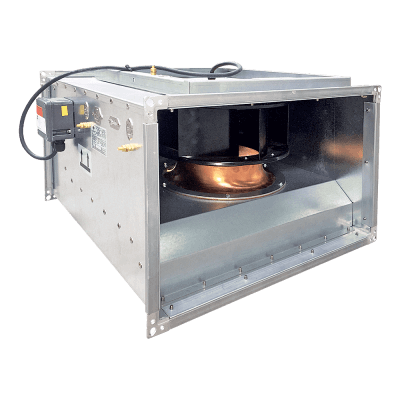

EBF

EBF fans meet the requirements of the ATEX Directive 2014/34 /EU. They are designed for use in potentially explosive atmospheres outside mines and mining pits.

pst max =  660 Pa

Qmax = 6 350 m3/h

Pmax =  1 100 W

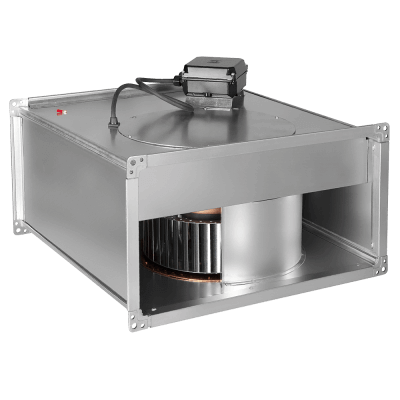

ILT EX

Rectangular fans for use in any position in rectangular ventilation ducts and for operation in potentially explosive atmospheres.

pst max =  720 Pa

Qmax = 4 000 m3/h

Pmax = 2 300 W

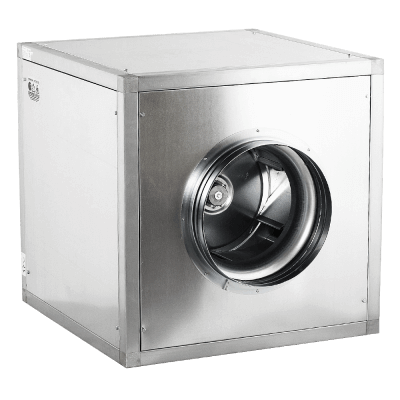

CVAT-N EX

The very quiet operation makes CVAT ideal for the ventilation of public buildings, libraries, conference rooms, offices, restaurants, classrooms, audio studios.

pst max = 1 050 Pa

Qmax = 14 640 m3/h

Pmax =   3 234 W

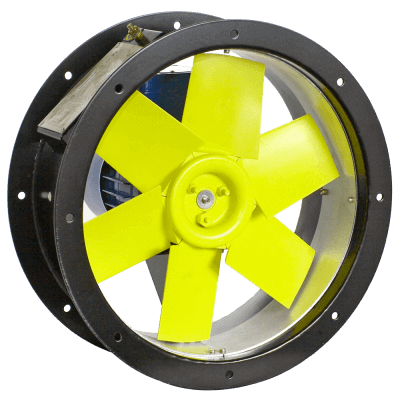

EAC

The EAC axial fans for duct and wall mounting are manufactured in accordance with ATEX Directive 2014/34/EU and the international standard ISO 9001.

pst max = 1 200 Pa

Qmax = 64 000 m3/h

Pmax =  11 000 W

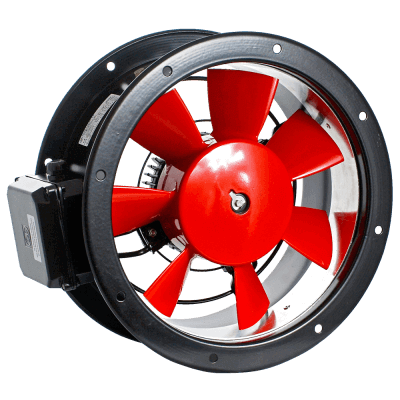

TCBT EX

Range of axial fans with cylindrical casing equipped with aluminium impellers and manufactured from high quality galvanised sheet steel. Explosion protection according to ATEX directive.

pst max =     380 Pa

Qmax =  42 490 m3/h

Pmax =    7 688 W

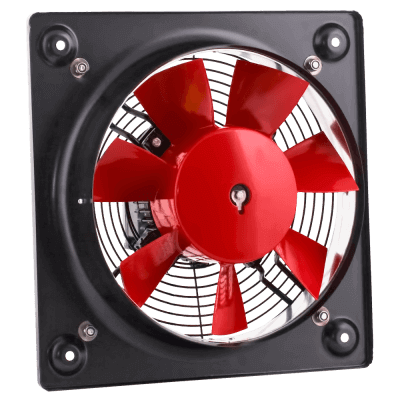

HCBT EX

Range of low profile axial fans equipped with aluminium impellers. Explosion-proof versions according to ATEX directive.

pst max =    600 Pa

Qmax = 53 700 m3/h

Pmax =   8 675 W

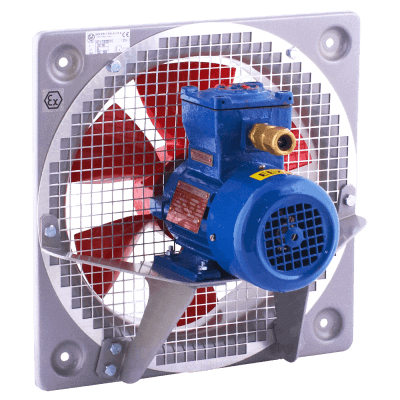

HDB/HDT

Range of flameproof plate mounted axial fans according to ATEX directive. Mounting plate and motor support made of sheet aluminium.

pst max =    300 Pa

Qmax = 13 730 m3/h

Pmax =   1 100 W

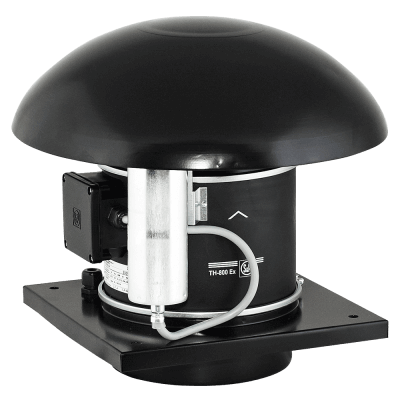

TH EX

Fans are manufactured in accordance with the international ISO 9001 standards and in accordance with the standard for quality assurance of protective systems in the manufacture of products intended for use in potentially explosive atmospheres.

pst max =   670 Pa

Qmax =  1 150 m3/h

Pmax =     197 W

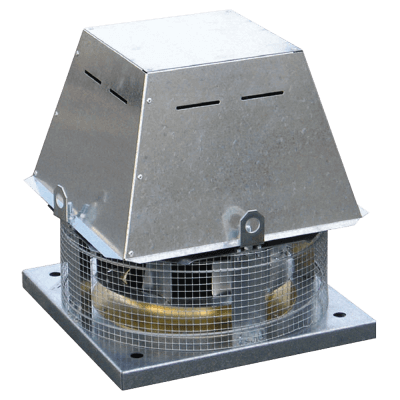

TCDH EX

The TCDH EXD roof fans are designed for general and industrial ventilation systems in potentially explosive atmospheres. They have been manufactured in accordance with the requirements of ATEX Directive 94/9/CE.

pst max =    860 Pa

Qmax = 25 000 m3/h

Pmax =   5 500 W

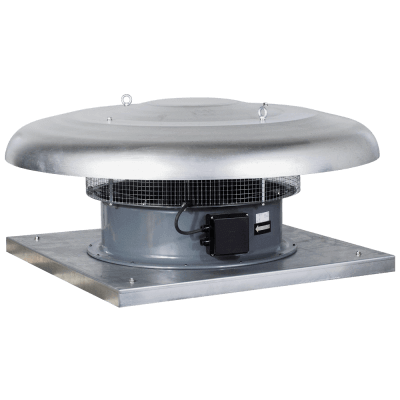

HCTT EX

Range of axial roof fans with horizontal air outlet configuration. Base made of galvanised sheet steel. Cowl made of spun aluminium.

pst max =    680 Pa

Qmax = 44 780 m3/h

Pmax =   5 500 W

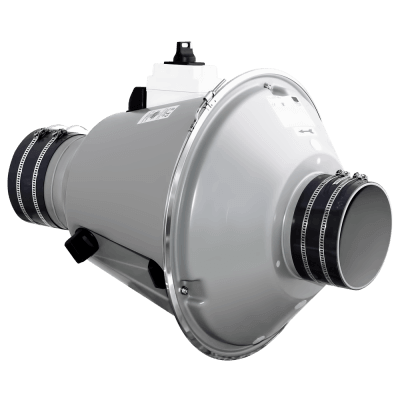

CRDV-C EX

The fan is designed to transport a dust-free medium containing aggressive chemical compounds. Typical applications are fume cupboards and chemical laboratories, chemical, pharmaceutical, food and public facilities.

pst max = 1 300 Pa

Qmax =   4 900 m3/h

Pmax =   3 000 W

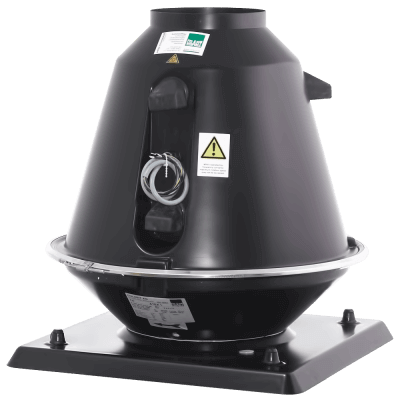

CRDV-R EX

The fan is designed to transport a dust-free medium containing aggressive chemical compounds. Typical applications are fume cupboards and chemical laboratories, chemical, pharmaceutical, food and public facilities.

pst max = 1 300 Pa

Qmax =   4 900 m3/h

Pmax =   3 000 W

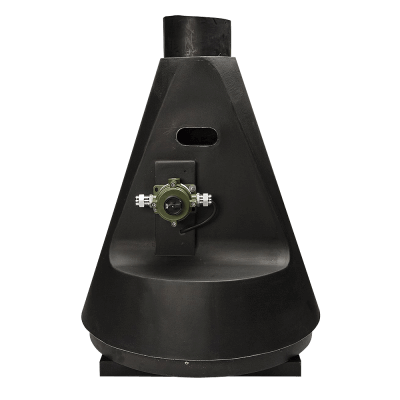

JET EX

The special versions of the JET series fans resistant to chemical substances, marked ATEX, meet the requirements of ATEX 2014/34/UE on equipment

pst max = 1 560 Pa

Qmax =   3 850 m3/h

Pmax =   2 200 W

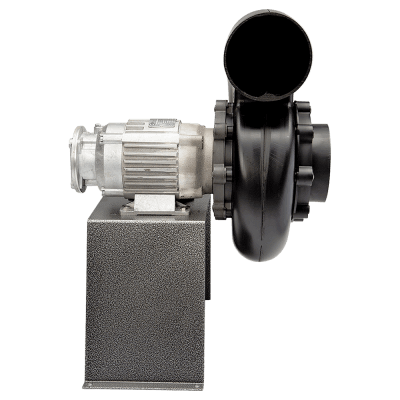

SEAT EX

The explosion-proof, chemical-resistant radial fans of the SEAT Ex series are special versions of the VISP type fans.



pst max = 1 450 Pa

Qmax = 10 450 m3/h

Pmax =   5 500 W

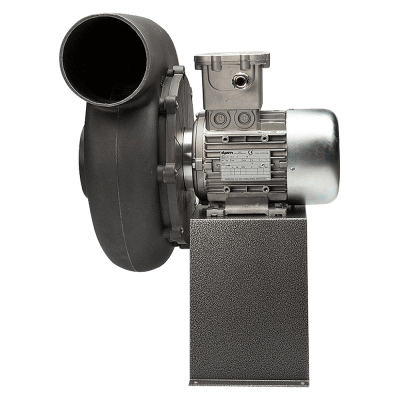

STORM EX

The explosion-proof, chemical-resistant radial fans of the STORM Ex series are special versions of the VASP type fans.

pst max = 2 010 Pa

Qmax =   1 850 m3/h

Pmax =   2 200 W

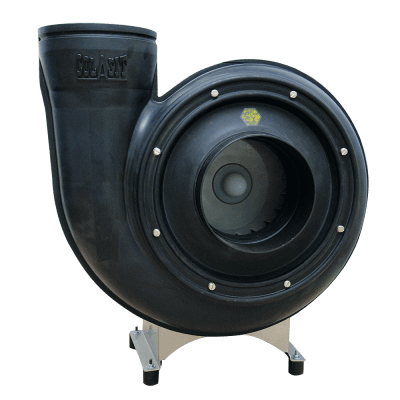

CMV ECO EX

CMVeco centrifugal fans are designed for the transport of aggressive chemicals, humid gases or vapours. Suitable for use in extraction systems and fume cupboards in the chemical industry and often used in public buildings such as hospitals, laboratories, schools.

pst max = 2 750 Pa

Qmax = 10 960 m3/h

Pmax =   4 000 W

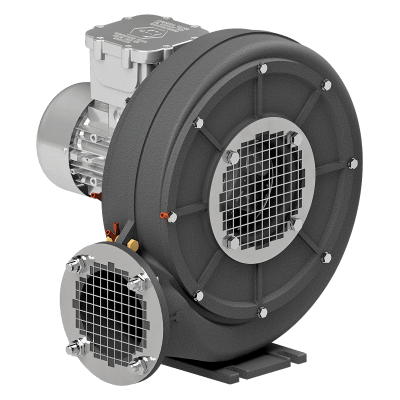

EBA

EBA fans meet the requirements of the ATEX Directive 2014/34 / EU and are designed for use in potentially explosive atmospheres outside mines and mining excavations.

pst max = 6 100 Pa

Qmax =   6 040 m3/h

Pmax = 13 200 W

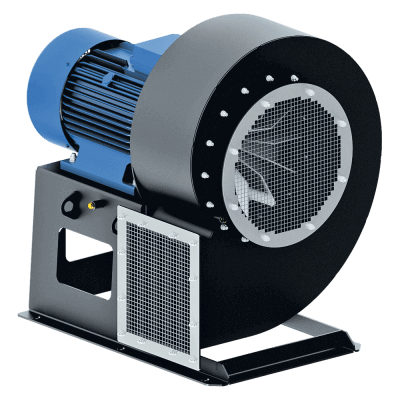

EGT

EGT fans meet the requirements of the ATEX Directive 2014/34 / EU and are designed for use in potentially explosive atmospheres outside mines and mining pits.

pst max = 3 130 Pa

Qmax = 11 365 m3/h

Pmax = 16 000 W

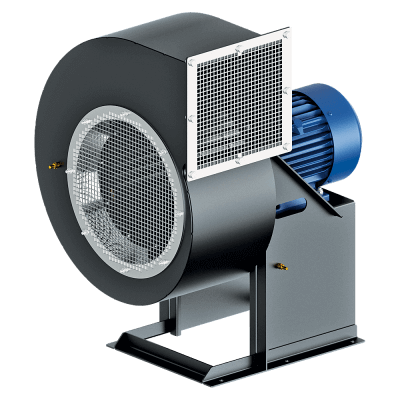

ELF

Fans meet the requirements of the ATEX Directive 2014/34 / EU and are designed for use in potentially explosive atmospheres outside mines and mining excavations.

pst max = 2 240 Pa

Qmax = 11 500 m3/h

Pmax =   7 500 W

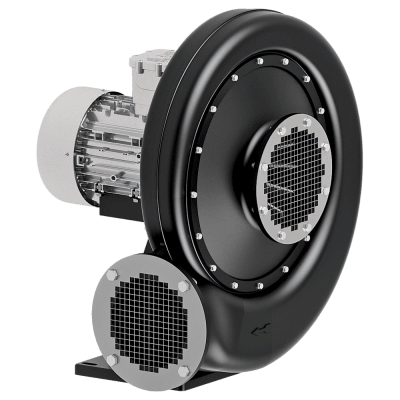

EMT

Paint chambers, chemical laboratories, chemical industry, petroleum chemistry, etc. EMT series centrifugal fans are manufactured in accordance with international quality assurance standards ISO 9001 and PN-EN 13980.

pst max = 2 925 Pa

Qmax =   3 600 m3/h

Pmax =   4 000 W
