HPB-F INT Hochdruck-Radialgebläse mit integriertem Frequenzumrichter für Transportsysteme nicht aggressiver Gase.

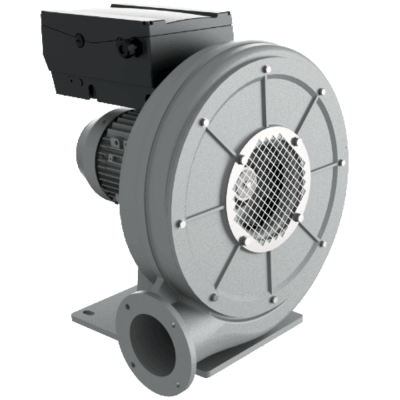

Centrifugal fan-HPB-F INT

Application

The fan is designed for transport systems of non-aggressive and non-explosive gases without pollution. Typical uses are:

  • pneumatic transport,
  • blowing in drying systems (e.g. graphic machines and processing of plastics),
  • air blowing systems in combustion / thermal treatment systems (e.g. melting furnaces).

Construction

  • radial high pressure fan with direct drive
  • riveted rotor made of aluminum sheet, with type B blades, dynamically balanced according to ISO 1940-1
  • die-cast aluminum housing
  • galvanized inlet cover
  • base welded from steel sheet
  • fan painted gray RAL7042 (in selected sizes engine painted in RAL 5010)
  • maximum temperature of the transported medium 80 ° C
  • motor ambient temperature from -20 ° C to + 40 ° C
  • figure LG270

Drive

  • asynchronous, three-phase, 230 / 400V, 100Hz or 400V, 100Hz (depending on the motor power)
  • insulation class F
  • degree of protection IP55
  • equipped with thermal protection PTC or PTC and TP depending on the model
  • FC version equipped with an independent cooling module

Special designs

  • any LG / RD figure
  • painting in a color other than the standard
  • rotor made of galvanized steel sheet
  • impeller made of stainless steel 1.4301
  • rotor made of acid-resistant steel 1.4404
  • motor with a different degree of IP protection
  • engine equipped with sensors or additional cooling
  • motor ambient temperature below -20 ° C and above + 40 ° C
