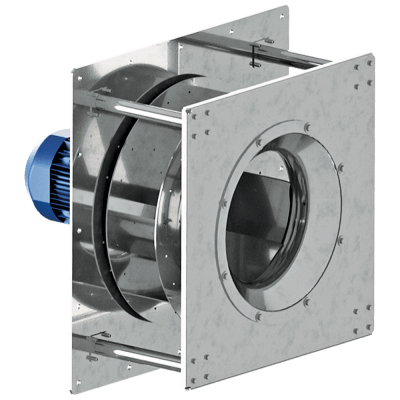

Radialventilator PBMV zur Förderung heißer Prozessmedien, langlebig und leistungsstark für industrielle Anwendungen

Centrifugal fan-PBMV

Application

Built-in fans for the transport of process-specific media and ventilation applications. This fan type is used in the following areas, among others:

  • Refrigeration and air conditioning
  • Ventilation systems
  • Thermoprocessing technology
  • Furnace construction
  • Surface technology
  • etc.

Construction

Direct-driven industrial built-in centrifugal fan. Impeller with backward curved blades made of aluminium.

Motor

  • IEC standard motor
  • Asynchronous, single-phase, 230V, 50Hz (up to 1.5 kW)
  • Asynchronous, three-phase, 230/400V, 50Hz (up to 3.0 kW)
  • Asynchronous, three-phase, 400/690V, 50Hz (from 4.0 kW)
  • Efficiency class IE3
  • Protection class IP55
  • Insulation class F
  • Designed for frequency converter operation
  • Motor ambient temperatures from -20°C to +40°C

Special designs

  • Direction of rotation available in LG (counterclockwise) and RD (clockwise)
  • All colours from the standard RAL colour palette
  • Increased corrosion protection
  • Housing and impeller available in different materials
  • Various shaft seals
  • Motors in special designs
  • Thermal insulation on the outside or as an insulating box on the inside
